제품 상세 정보:
|
| 강조하다: | Single end opening with large diameter structure,Can be used under the condition of 120℃,Stainless steel material |
||
|---|---|---|---|

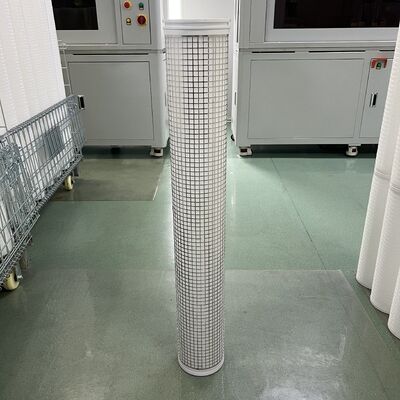

PHFLH Series High Flow Filter Cartridge is engineered for demanding industrial applications requiring high-temperature resistance and exceptional flow rates.
| Outside Diameter | 6" (152mm) |
| Length | 20"/40"/60" |
| Model | PHFLH |
| Filter Media | Polyester |
| Support/Drainage | Polyester |
| End Caps | Glass Fiber Reinforced Polypropylene |
| Seals Material | NBR, EPDM, Silicone |
| Micron Ratings | 1μm, 5μm, 10μm, 15μm, 20μm, 40μm, 70μm, 100μm |
| Maximum Operating Temperature | 121℃ |
| Maximum Operating Differential Pressure | 3.44bar @ 121℃ |
| Suggested Replacement Pressure | 2.5Bar @ 20℃ |
| Suggested Design Flow | 40": 70m³/h | 60": 110m³/h |
The High Flow Filter Cartridge is packaged in durable containers designed to ensure safe delivery and protect against damage during transit.
Each container is sealed to prevent dust and dirt contamination, and products are shipped via trusted carriers with careful handling and monitoring throughout transit.
