| 강조하다: | Ultra-high Filtration Efficiency,Full Chemical Compatibility,Cost-saving Operation |
||
|---|---|---|---|

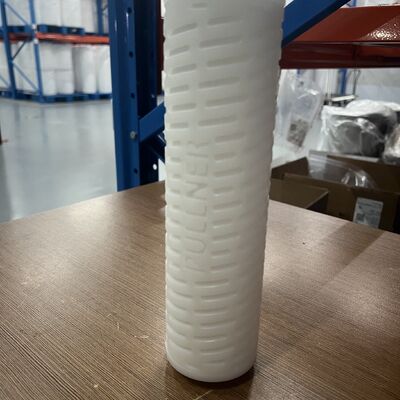

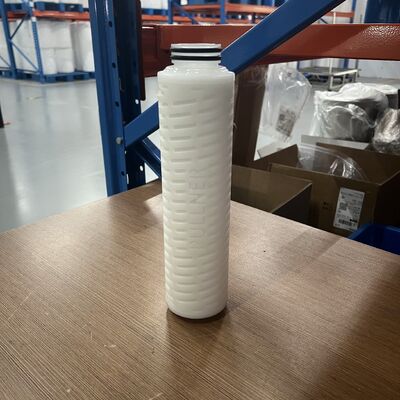

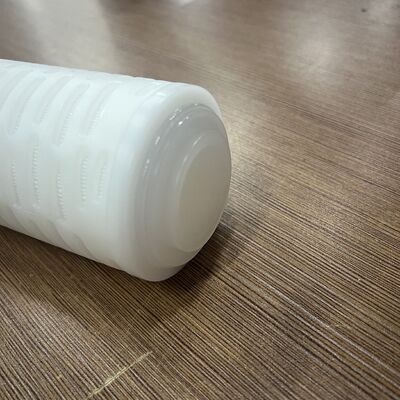

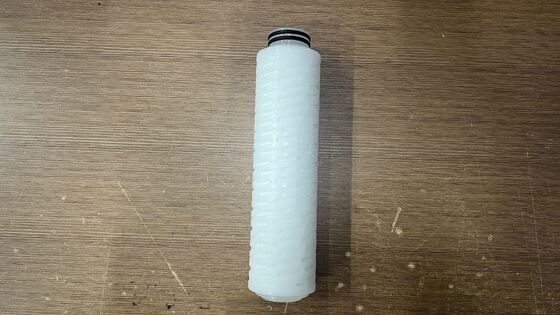

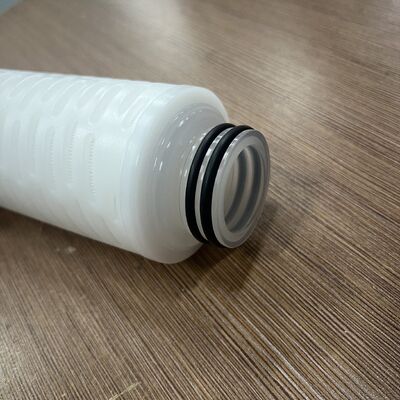

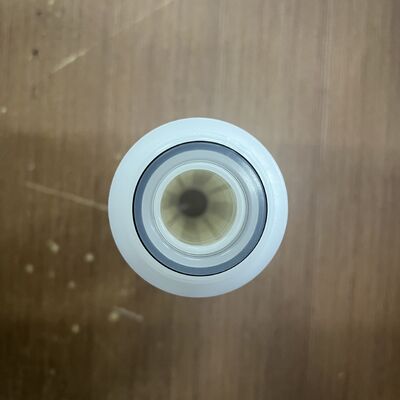

The PFL series flter cartridge uses PTFE flter membrane, offering excellent chemical compatibility and natural hydrophobicity. Strictly controls metal ion extractables, suitable for most chemicals and organic solvents filtration in the electronic industry.
The PFLH series flter cartridge uses modifed hydrophilic PTFE membrane, which can directly filter polar solutions without pre-wetting, reducing operation time and usage costs. PTFE filter membrane provides excellent particle capture performance, offering up to 99.99% particle interception efficiency.
|
Material Constructions
|
|
|
Filter Media
|
PFL: Hydrophobic PTFE Membrane
PFLH: Modified Hydrophilic PTFE Membrane |
|
Support/Drainage
|
Polypropylene (PP)
|
|
Cage/Center Core/End Cap
|
Polypropylene (PP)
|
|
Seal Material Options
|
EPDM, Encapsulated FEP
|
|
Max. working pressure differential
|
0.3Mpa
|
|
Max. working temperature
|
80°C
|
|
Series
|
Micron Rating
|
Length
|
End Cap Type
|
Seal Material
|
||||
|---|---|---|---|---|---|---|---|---|
|
PFL/PFLH
|
0005 = 0.05µm
0010 = 0.1µm 0022 = 0.22µm 0045 = 0.45µm 0100 = 1.0µm |
05 = 5"
10 = 10" 20 = 20" 30 = 30" 40 = 40" |
C1 = 226/Spear
C3 = 222/Spear C5 = 222/Flat C6 = 226/Flat C9 = DOE |
E = EPDM
S = Silicone V = FKM P = FEP |
||||
