| 강조하다: | 60inches RO FRP Filter Housing for Corrosive Liquids,Help to save much space and equipment cost,Combined with ultrafiltration and reverse osmosis systems |
||
|---|---|---|---|

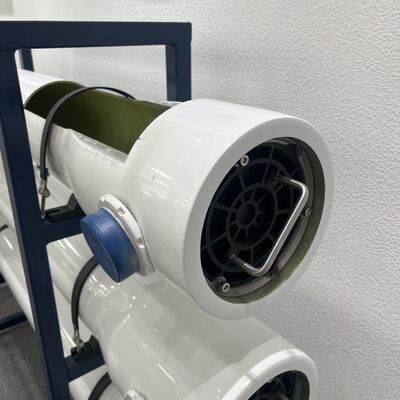

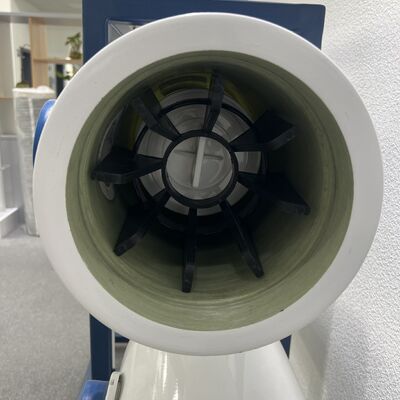

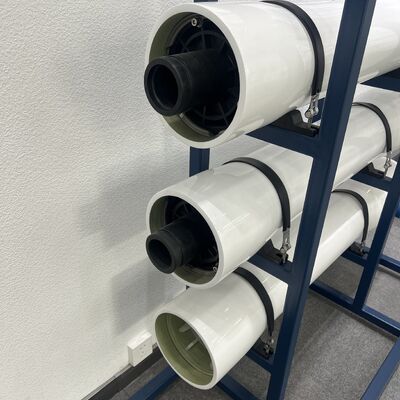

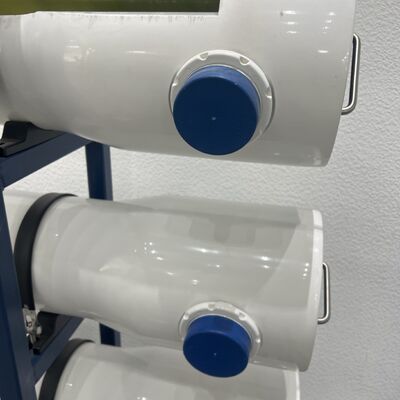

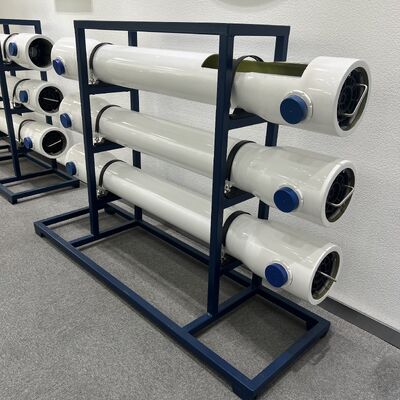

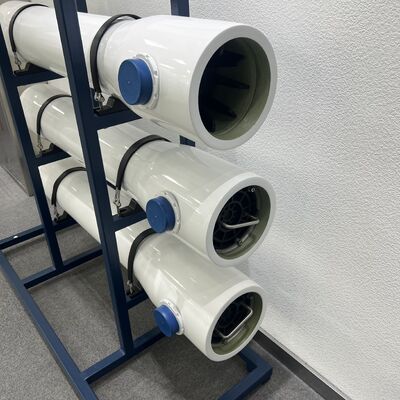

The P-FRP150 series FRP filter housing is specifically designed for corrosive liquid filtration applications including seawater desalination and pharmaceutical industries. This advanced filtration solution effectively addresses common issues with traditional filters such as corrosion, leakage, and degumming problems.
| Component | Material |
|---|---|
| Filter Housing | FRP |
| Water Intake | FRP |
| Saddle | Rubber |
| Strapping | Stainless Steel/Rubber/Brass |
| Strap Bolt | Stainless Steel |
| Sealing | EPDM/Silicone/Fluorine Rubber |
| Design Pressure | 0.6MPa / 1.0MPa |
| Operating Temperature | -10℃~65℃ |
| Filter Cartridge Length | 1028mm/1540mm |
| Filter Cartridge Diameter | 152mm |
| Liquid Flow Direction | Inside to Outside (Internal Pressure Type) |
| Design Flow | 35m³/h |
| Code | Filter Number | Filter Length | Inlet/Outlet Connection | Sealing Material | Design Pressure |
|---|---|---|---|---|---|
| P-FRP150 | 01 (1 Round) | 20 (20") | K65 (DN65) | S (Silicone) | Z (0.6MPa) |
| 40 (40") | K80 (DN80) | E (EPDM) | O (1.0MPa) | ||
| 60 (60") | K100 (DN100) | V (FKM) | C (Customize) | ||
| T (PTFE) |
Shanghai Pullner Filtration Technology Co., Ltd. is a renowned enterprise specializing in the research, development, production, and sales of micro membrane filtration equipment and comprehensive filtration systems.
Our manufacturing plant features a 10,000 square meter 100,000-level Clean Room with over 10 production lines dedicated to various precision filter cartridges. We maintain strict quality control standards in accordance with international certification requirements, supported by a highly skilled technical R&D and verification team committed to delivering superior quality products.
Our advanced laboratory is equipped with comprehensive testing facilities including aperture distribution instruments, water single-pass test benches, scanning electron microscopes, bacterial challenge labs, online particle detectors, diaphragm test benches, air permeability testers, filter cartridge integrity testers, and field condition simulation test trolleys. Our team of testing experts provides rapid solutions for diverse application conditions.
