| 강조하다: | 6'' 152.4mm Diameter,high-strength pp center core,integral pp cage and polyester mesh |
||
|---|---|---|---|

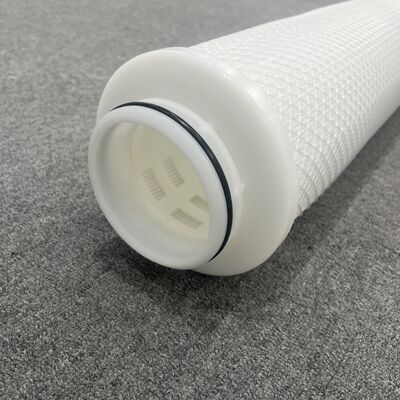

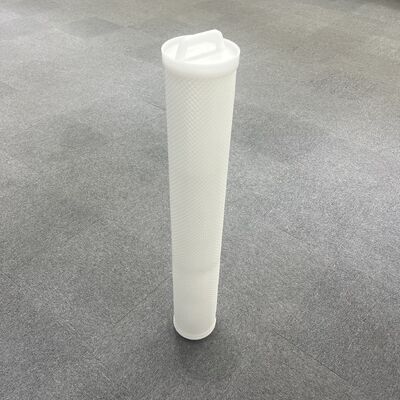

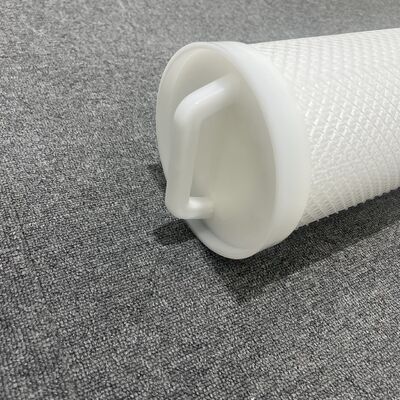

PHFK series high flow filter cartridge is made of diameter 6"(152mm) and PP pleated design, with high-strength pp center core, outside to inside flow direction. All connection use thermal welding. Outer cage have two types: integral pp cage and polyester mesh.
| Model | Filter Medium | Support/Drainage | End Caps | Seals Material |
|---|---|---|---|---|
| PP | Deep Pleated PP | Polypropylene | Glass Fiber Reinforced Polypropylene | NBR, Silicone, EPDM, FKM |
| PET | Pleated Polyester | Polyester | Glass Fiber Reinforced Polypropylene |
| OD | 6" (152mm) |
|---|---|
| Length | 40" (1016mm) |
| Micron | 1um, 5um, 10um, 15um , 20um, 40um, 70um, 100um |
| Max. operating temperature | PP type: 82℃ |
| PET type: 121℃ | |
| Max. operating differential pressure | PP type: 3.44bar@82℃ |
| PET type: 3.44bar@121℃ | |
| Suggestion pressure for filter replacement | 2.5Bar@20℃ |
| Max. flow rate | 70m3/h |
| Filtration direction | Outside to inside |
