| 강조하다: | 130 Series Pleated Filter Cartridge Outer Diameter 130mm |
||
|---|---|---|---|

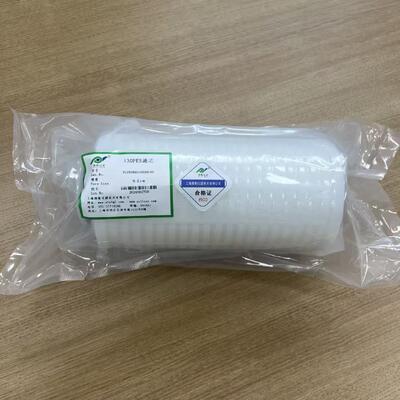

The 130mm High Generation Line Wet Process High Flow Membrane Filter Cartridge is engineered for applications requiring high flow rates. Capable of achieving flow requirements exceeding 200L/min, this filter cartridge features an optimized design that maximizes space efficiency in equipment layouts. With a single filter element filtration area exceeding 2m², it delivers exceptional high flow performance and superior dirt holding capacity, significantly reducing equipment downtime associated with filter cartridge replacements.
| Series | PFL Micron | PFLH Micron | EPS Micron | HPPV Micron | Length | End Cap Type | Seal Material |
|---|---|---|---|---|---|---|---|
| 130 | 0.2μm | 0.2μm | 0.05μm | 0.5μm | 10" | Single O-ring | EPDM, Silicone, V |
| 0.5μm | 0.5μm | 0.1μm | 1.0μm | ||||
| 1.0μm | 1.0μm | 0.22μm | 1.5μm | ||||
| 3.0μm | 3.0μm | 0.45μm | 3.0μm | ||||
| 5.0μm | 5.0μm | 0.65μm | 5.0μm | ||||
| 10μm | 10μm | 10μm | 1.2μm | ||||
| 20μm |
Shanghai Pullner Filtration Technology Co., LTD.
Established: 2013
Specialty: PP pleated filter cartridges, melt-blown filter cartridges, string wound filter cartridges, stainless steel filter cartridges, and other filtration solutions.
Beijing, Guangzhou, Fujian, Sichuan, Guangxi, Yunnan, Xinjiang, Inner Mongolia, Shaanxi, Northeast China
UAE (Dubai), Malaysia (Kuala Lumpur), Russia (Moscow)
