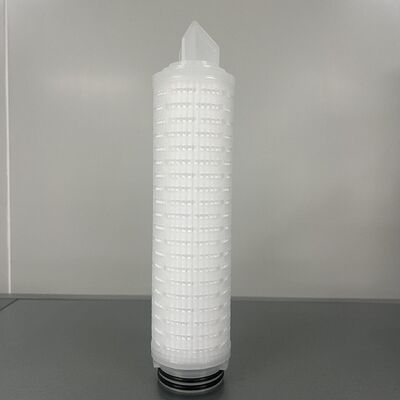

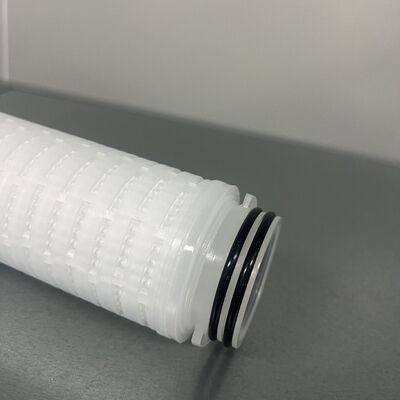

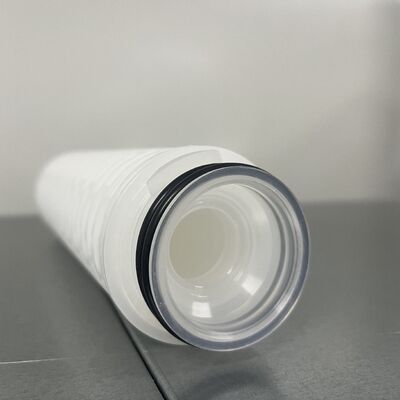

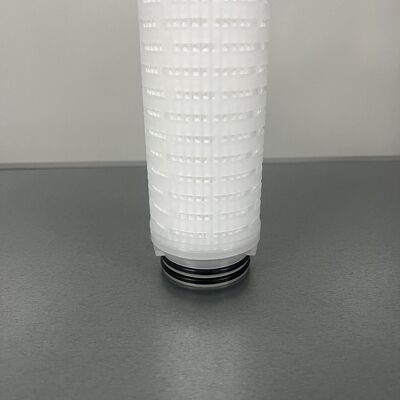

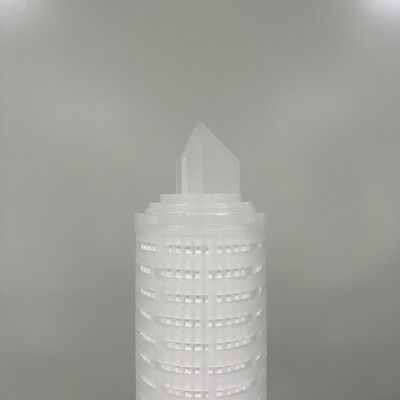

10inch PP Pleated Filter Cartridge with Polypropylene Core
High-performance PP pleated filter cartridge with polypropylene core designed for industrial filtration applications.
Applications
- Food and Beverage: Beer, wine, juice, soda, oral liquid, additives, and oil filtration
- Water Treatment: Urban water supply and industrial water filtration; Power plant condensate filtration
- Metal Processing: Cutting fluid and coolant filtration; Lubricating oil filtration
- Fine Chemicals: Catalyst filtration; Cosmetics raw materials and finished products filtration; Chemical auxiliary filtration
- Petrochemical Industry: Aviation kerosene filtration; Diesel and fuel filtration
Technical Specifications
| Item |
Technical Parameters |
| Filter Medium |
Polypropylene (PP) |
| Support/Drainage |
Polypropylene (PP) |
| Core/Cage/End Cap |
Polypropylene (PP) |
| Outside Diameter |
2.7" (68.5mm) |
| Length |
10", 20", 30", 40" |
| Micron |
0.1um, 0.22um, 0.45um, 1um, 2um, 3um, 5um, 10um, 20um, 30um, 60um |
| Filtration Area |
0.4-0.7m² |
| Max. Operating Differential Pressure |
ΔP≤0.35MPa at 25℃ |
| Max. Operating Differential Pressure (Reverse Direction) |
ΔP≤0.28MPa at 60℃ |
| Max. Operating Temperature |
80℃ (Stainless steel support recommended for temperatures exceeding 50℃) |
| Sterilization Temperature |
30 minute cycles @121℃ |
| Max. Operating Pressure |
4bar/21℃, 2.4bar/80℃ |
Material Construction
| Filter Media |
Polypropylene (PP) |
| Support/Drainage |
Polypropylene (PP) |
| Cage/Core/End Caps |
Polypropylene (PP) |
| Seal Material |
Silicone, NBR, Vit, EPDM |
Company Profile
Shanghai Pullner Filtration Technology Co., LTD.
Established: 2013
Specialty: PP pleated filter cartridges, melt-blown filter cartridges, string wound filter cartridges, stainless steel filter cartridges, etc.
Domestic Offices in China
Beijing, Guangzhou, Fujian, Sichuan, Guangxi, Yunnan, Xinjiang, Inner Mongolia, Shaanxi, Northeast China
Global Branches and Offices
UAE (Dubai), Malaysia (Kuala Lumpur), Russia (Moscow)
Packaging
Professional packaging solutions to ensure product integrity during transportation and storage.
Certifications
Frequently Asked Questions
What is the brand name of this product?
The brand name is PULLNER.
What is the model number of this product?
The model number is PLZ.
Where is this product manufactured?
This product is made in China.
What is the main function of this product?
The main function of this product is to filter beverages.
What is the recommended usage time for this product?
The recommended usage time for this product is 6-12 months.
