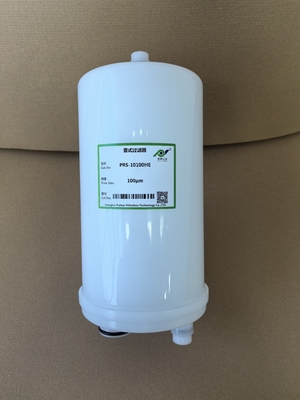

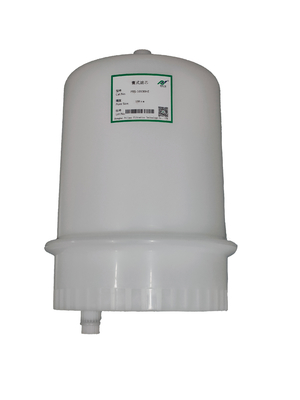

PRS Series Capsule Filter Cartridge
Product information
1. Product Introduction
The PRS series integrated filter cartridge is designed for ultra-high flow applications. Its high-flow structure is well-suited for high-speed coating production lines. The cartridge contains seven wound filter cores inside, which significantly extend service life and reduce replacement frequency, meeting the demands of high-speed coating processes. The bottom is designed with a drain outlet for efficient liquid recovery and reuse.
2. Application Fields
Slurry filtration
Coating liquid filtration
Colloidal product filtration
Filtration of liquids containing toxic or hazardous substances
3. Flow Rate Curve and structure of product
4. Product Specifications
|
Model |
PRS |
|
Length |
378mm |
|
OD |
250mm |
|
Media Material |
PP |
|
Material of Outer Core |
PP |
|
Thread type of the vent valve |
1/4” NPT |
|
Design Pressure |
0.8Mpa |
|
Maximum Operating Pressure |
0.5Mpa@20℃ |
|
Maximum Operating Temperature |
80℃ |
5.Order Information
PRS—10—100H—E
|
Series |
Length |
Micron |
O-ring |
|
|
PRS |
10=10" |
0500=5μm 1000=10μm 1500=15μm 3000=30μm 5000=50μm 7500=75μm |
100H=100μm 120H=120μm 150H=150μm 200H=200μm 250H=250μm 300H=300μm |
E=EPDM |
6. FAQ:
Q1: Who is the manufacturer and brand of the filter cartridges?
A1: Shanghai Pullner Filtration Technology Co., Ltd.
Q2: Can you provide samples?
A2: We offer 1–2 free samples. Buyers only need to cover the shipping cost.
Q3: What is the delivery time?
A3: Delivery time is usually within 5–10 days depending on the order quantity. Below is the production capacity for each product:
| Product Name | Daily Production Capacity |
|---|---|
| High Flow Filter Cartridge | 500 pcs/day |
| Condensate Filter Element | 200 pcs/day |
| Microporous Pleated Filter Cartridge | 200 pcs/day |
| Membrane Filter Cartridge | 100 pcs/day |
Q4: Is the filtration accuracy nominal or absolute?
A4: Our standard products use nominal rating. However, we can customize absolute-rated filters based on your application requirements.
Q5: Which brands can your filters replace?
A5: Our filters can be used as replacements for major brands such as PALL, 3M, PARKER, GARVER, and others.
Q6: What is the minimum order quantity (MOQ)?
A6: As a manufacturer, we accept a minimum order quantity of just 1 piece.
